USD0.80 - USD6.00 / tons
- Place of Origin:CN;HEB
- Material:Forged
- Model Number:G80
- Brand Name:EU
- Standard or Nonstandard:Standard
- Structure:Welded Chain
- Function:load chains
- certificate:CE GS ISO
- factory addrress:baoding
- Inspection: we test each one before packaging
- Packaging: standard export carton or PLY wooden case
- Online service: 24 hours online service

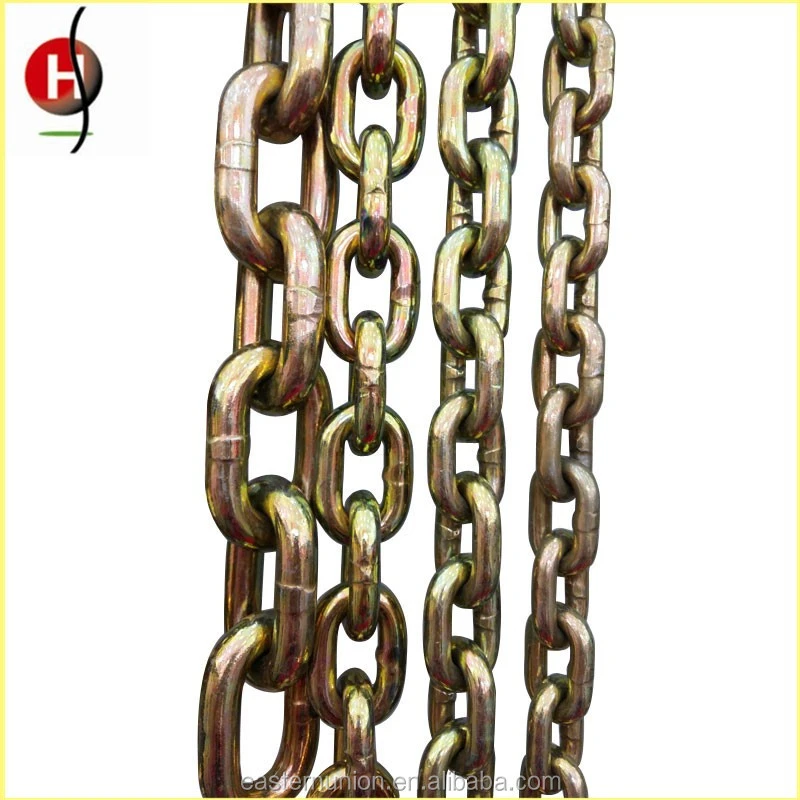

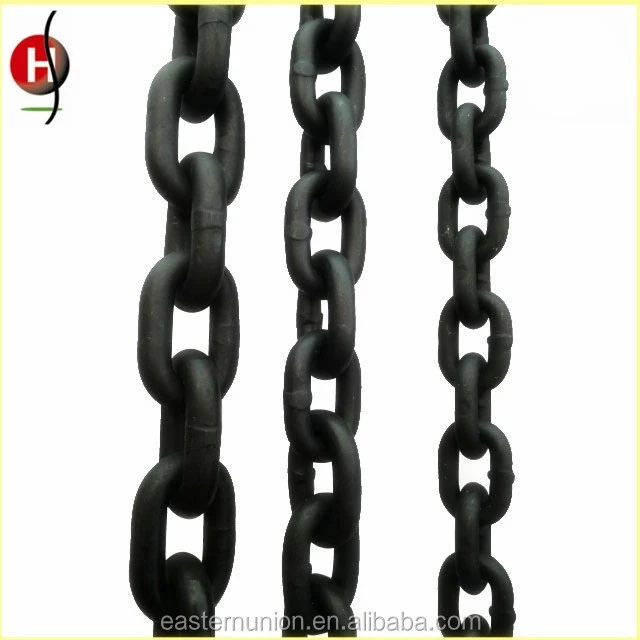

High Quality G80 Lifting Chain Alloy Forged Steel Lifting Chain
Details:
Chain Diameter ranges: 6*18, 7*21, 8*24, 10*30, 11*43, 12*36, 12.5*38, 13*39, 14*42, 14*50, 15*46, 16*48, 16*49, 16*64, 18*54, 18*64, 19*57, 20*60, 22*65, 22*66, 22*86, 24*72, 24*86, 26*78, 26*92, 30*90, 30*108, 32*96, 34*126.
Material: high quality alloy steel, 20Mn2, 20MnSi
Surface treatment: self-color polishing, black, painted, galvanized, color galvanized.
Quality grade: Grade 80
Safety factor: 4:1
Catalog:
| Specifications | Min. Width | Max. Widh | Working Load | Test Load | Minimum breaking load | Product weight |
| (mm) | (mm) | KN | ||||
| d*p(mm) | a | b | t | KN | G80 | kg/m |
| 6*18 | 7.5 | 21 | 1.1 | 27 | 45.2 | 0.79 |
| 7*21 | 9 | 24.5 | 1.5 | 37 | 61.6 | 1.07 |
| 8*24 | 10 | 28 | 2 | 48 | 80.4 | 1.38 |
| 10*30 | 12.5 | 35 | 3.2 | 76 | 125 | 2.2 |
| 11*43 | 12.6 | 36.5 | 3.8 | 92 | 154 | 2.33 |
| 12*36 | 15 | 42 | 4.6 | 109 | 181 | 3.1 |
| 12.5*38 | 15.5 | 42.2 | 4.9 | 117 | 196 | 3.3 |
| 13*39 | 16.3 | 46 | 5 | 128 | 214 | 3.8 |
| 14*42 | 18 | 49 | 6.3 | 150 | 250 | 4.13 |
| 14*50 | 17 | 48 | 6.3 | 150 | 250 | 4 |
| 15*46 | 20 | 52 | 7 | 168 | 280 | 5.17 |
| 16*48 | 20 | 56 | 8 | 192 | 320 | 5.63 |
| 16*49 | 24.5 | 59.5 | 8 | 192 | 320 | 5.71 |
| 16*64 | 23.9 | 58.9 | 8 | 192 | 320 | 5.11 |
| 18*54 | 23 | 63 | 10 | 246 | 410 | 6.85 |
| 18*64 | 21 | 60 | 10 | 246 | 410 | 6.6 |
| 19*57 | 23.7 | 63.2 | 11.3 | 270 | 450 | 7.7 |
| 20*60 | 25 | 70 | 12.5 | 300 | 450 | 8.6 |
| 22*65 | 28 | 74.2 | 15.3 | 366 | 610 | 10.7 |
| 22*66 | 28 | 77 | 15.3 | 366 | 610 | 10.2 |
| 22*86 | 26 | 74 | 15.3 | 366 | 610 | 9.5 |
| 24*72 | 32 | 82 | 18 | 432 | 720 | 12.78 |
| 24*86 | 28 | 79 | 18 | 432 | 720 | 11.6 |
| 26*78 | 35 | 91 | 21.3 | 510 | 850 | 14.87 |
| 26*92 | 30 | 86 | 21.3 | 510 | 850 | 13.7 |
| 30*90 | 38 | 105 | 28.3 | 678 | 1130 | 19.6 |
| 30*108 | 34 | 98 | 28.3 | 678 | 1130 | 18 |
| 32*96 | 40 | 106 | 32.2 | 772 | 1286 | 22.29 |
| 34*129 | 38 | 109 | 36.3 | 870 | 1450 | 22.7 |

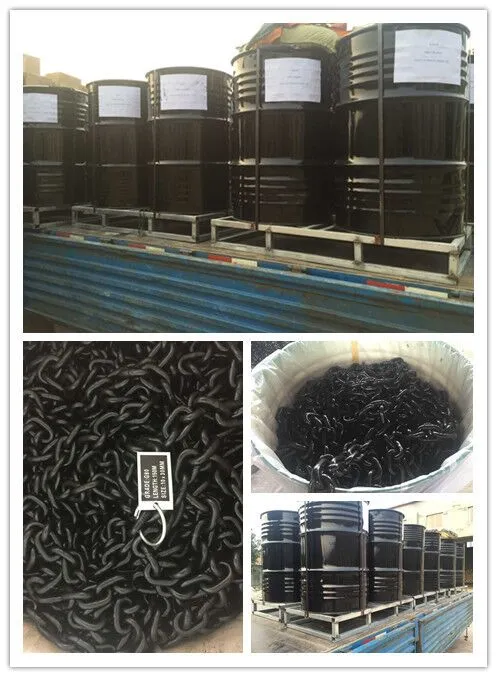

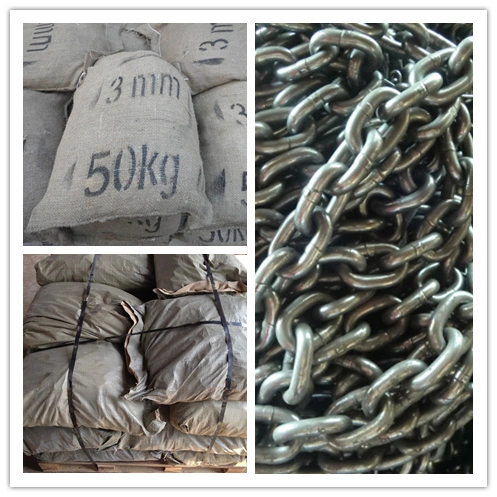

Package:
Standard iron drum, iron pallet, gunny bag and iron box
