USD20.00 - USD100.00 / sets
- capaity:0.5t-20t
- Load chain:G80 4:1 safety factor
- Hook:Forged alloyed steel hooks
- Certificate:CE,ISO GS
- Spare parts:Grade A
- Packaging:standard export carton or PLY wooden case
- OEM:we have more than 20 years of OEM, OEM accepted
- Inspection:we test each one before packaging
- Online service:24 hours online service
- factory address:baoding
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- After Warranty Service:Online support
- Local Service Location:None
- Showroom Location:None
- Condition:New
- Usage:Construction Hoist
- Power Source:Hand Chain
- Sling Type:Chain
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:Hot Product 2019
- Warranty of core components:1 YEAR
- Core Components:Gearbox
- Place of Origin:CN;HEB
- Brand Name:OEM
- Lift Speed:manual operate
- Certification:CE GS
- Warranty:1 Year

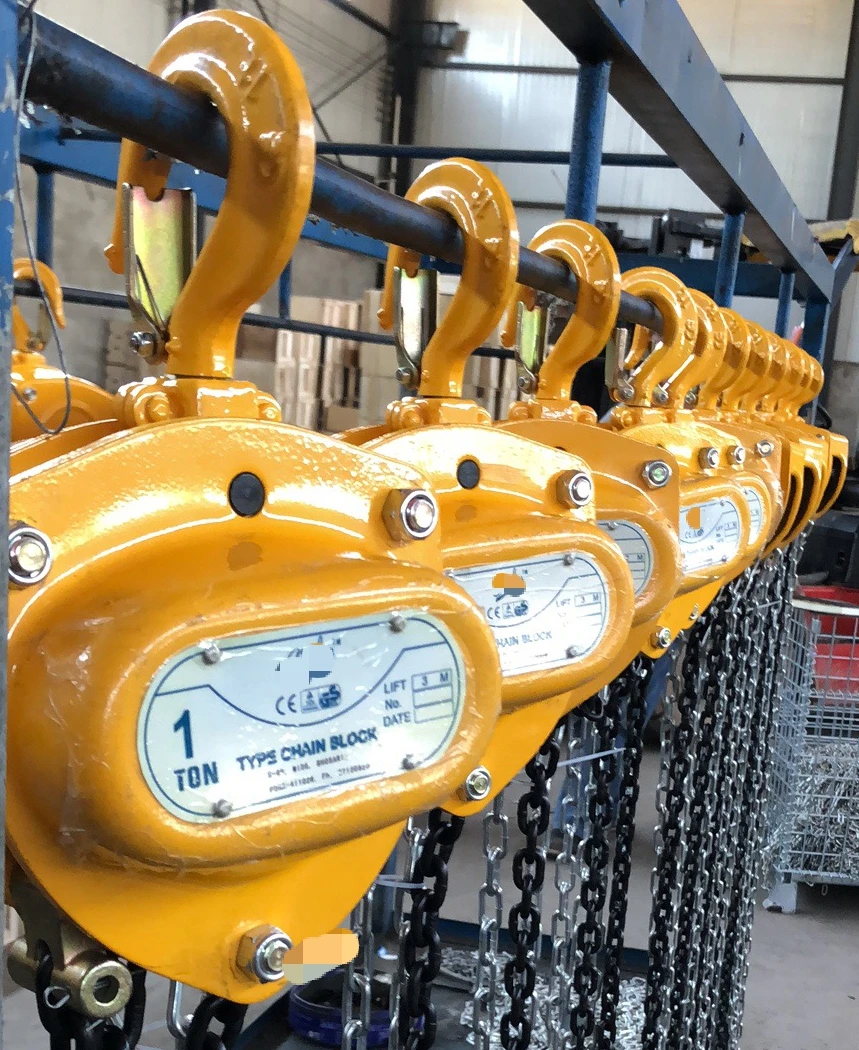

Top Quality VD Type Manual Chain Hoist Chain Pulley Block
Details:
Capacity: From 0.5T to 10T
Lifting Height: From 3M to 12M
Parameter:
| Model | KT 0.5 | KT 1 | KT 1.5 | KT 2 | KT 3 | KT 5 | KT 10 |
| Capacity(t) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 |
| lifting height (m) | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Test load(t) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 15 |
| Min. headroom (mm) | 285 | 315 | 340 | 380 | 475 | 600 | 740 |
| Effort required to lift rated load(N) | 249 | 284 | 380 | 343 | 372 | 372 | 382 |
| No. of load chain falls | 1 | 1 | 1 | 1 | 2 | 2 | 4 |
| Dia. of load chain(mm) | 5*15 | 6*18 | 7.1*21 | 8*24 | 10*30 | 10*30 | 10*30 |
| N.W. (kg) | 9.3 | 12.2 | 16.5 | 19.5 | 32 | 41.1 | 75.7 |
Application:
KT series Manual Chain Block is one of the most popular types of manual chain hoist. Which is promoted from the Japanese model, patent model with revolutionary design.
Special designed top hook can backout easily and can be installed with trolley directly. Premium grade alloy load chain and zinc plated hand chain as standard. Drop-forged and expertly heat treated hooks for great strength and long wearing.
The chain block can be attached to a trolley of any type as a traveling chain block. It is suitable to monorail overhead conveying system, handtravelling crane and jib crane.
Packing Details:
Packing: Standard export cartons with PLY wooden pallet.
Company Introduction:
EASTERN UNION GROUP has its own factory with more than 20 years histories, specialized in chain block, lever block, electric hoist, hand pallet truck, trolley, lifting chains, chain sling, etc.
Perfect and complete import and export related services, international transport network and a long-term cooperation with mutual benefit, all these has knitted a large net to meet our customer's requirements. Most of our products are exported to North and South America, Southeast Asia, Africa, Mid East, Europe etc.
Offer you the best service, supply you the first-class product and to be your sincere partner forever!
 |  |  |  |
